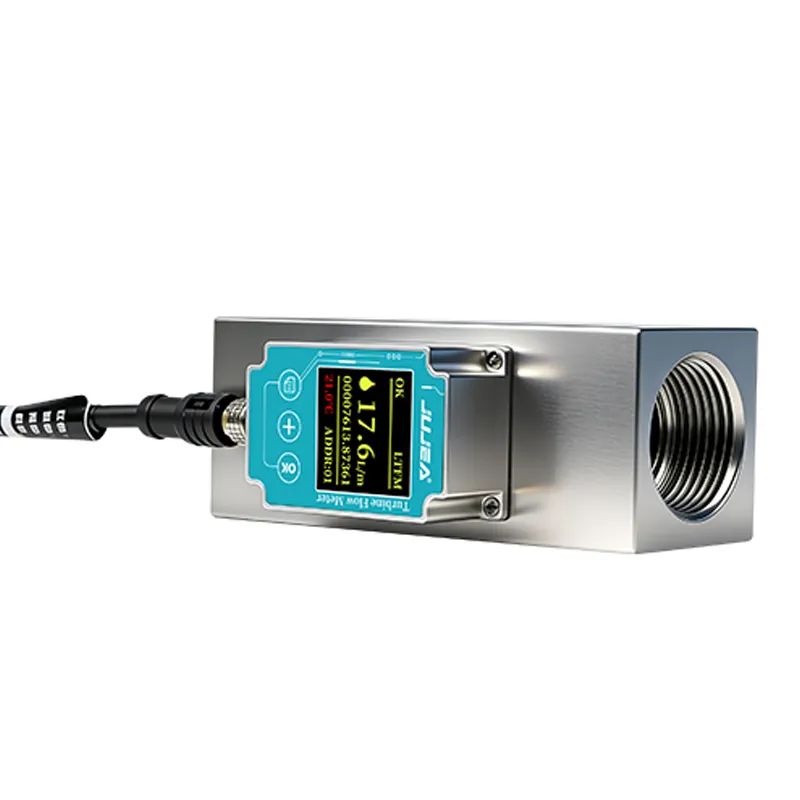

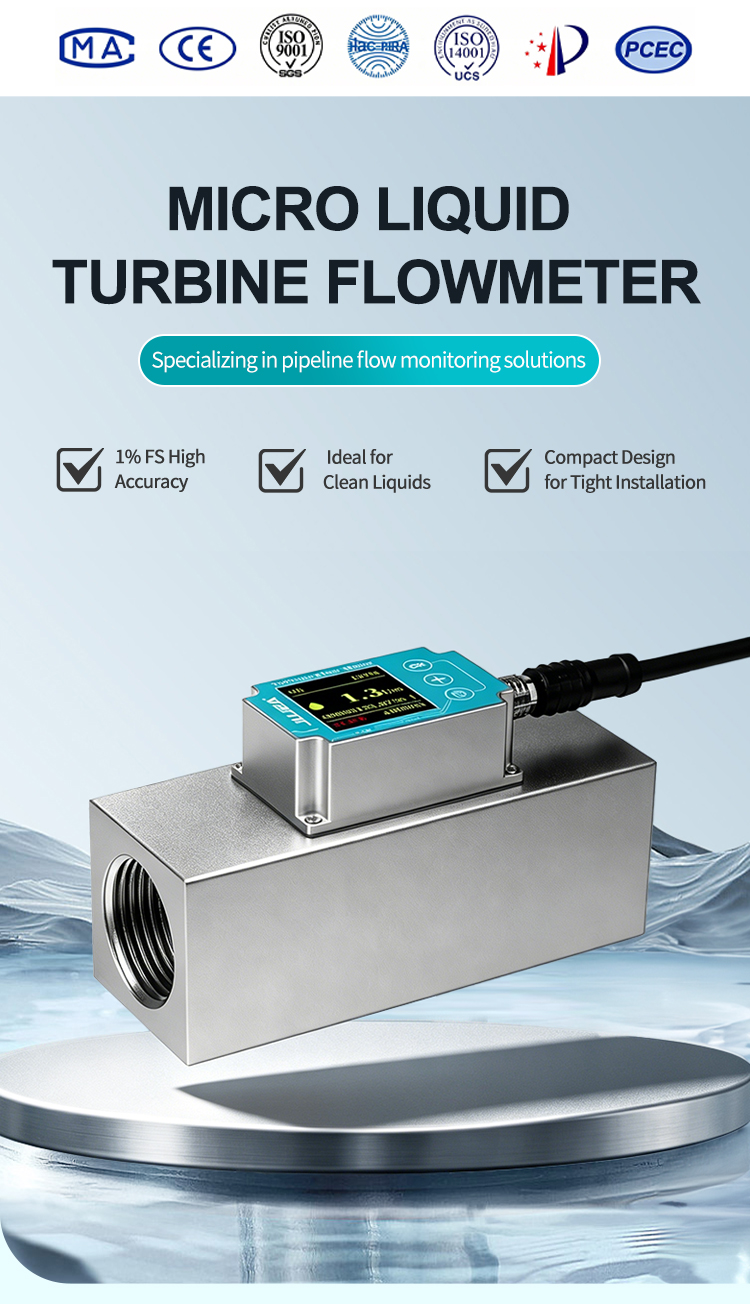

Průtokoměr mikro-turbíny

mikroturbínový průtokoměr s malými velikostmi dn4 ~ dn50, kompaktní struktura s závitem, karoserie z nerezavějící oceli 304. Dodává vysoce přesné měření pro čisté tekutiny s nízkým průtokem, podporující signály pulzu, 4-20ma a rs485 pro laboratorní a malé potrubní měření.

Features of Micro Turbine Flow Meter

Ultra-small caliber DN4–DN50, compact threaded structure for narrow tiny pipelines

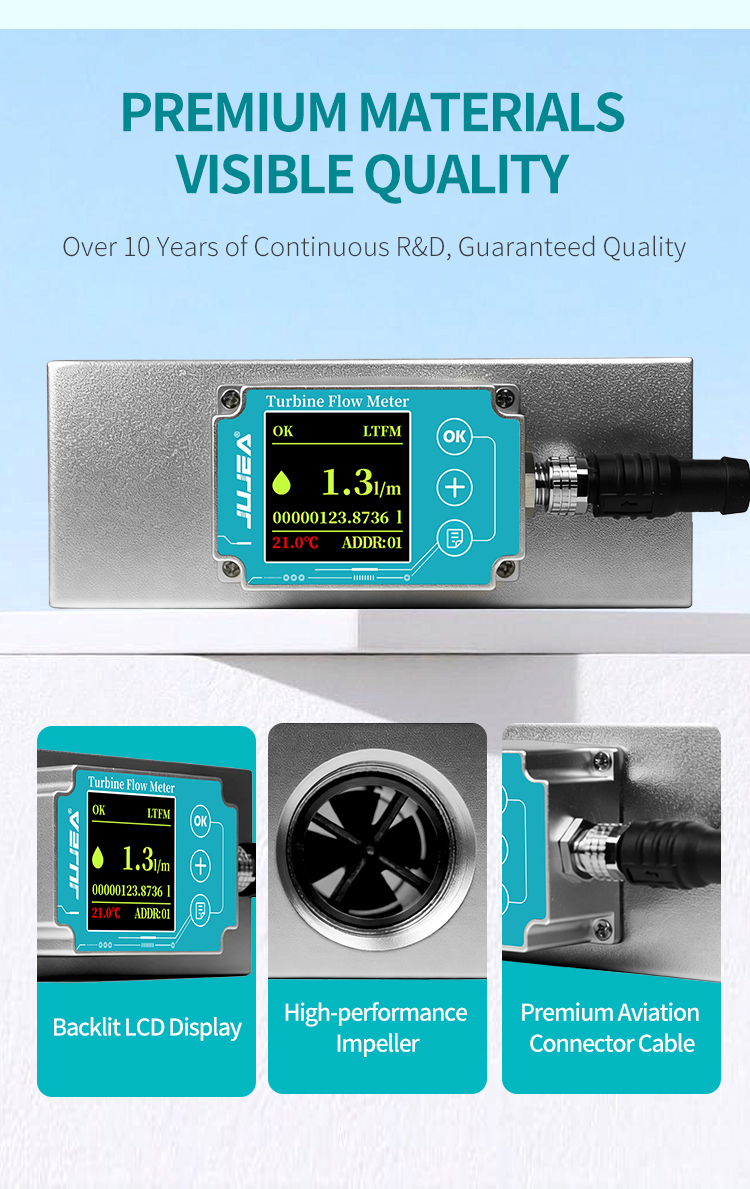

Sensitive mini impeller, fast response to slight flow fluctuations
Multiple signal outputs: pulse, 4-20mA, RS485 Modbus

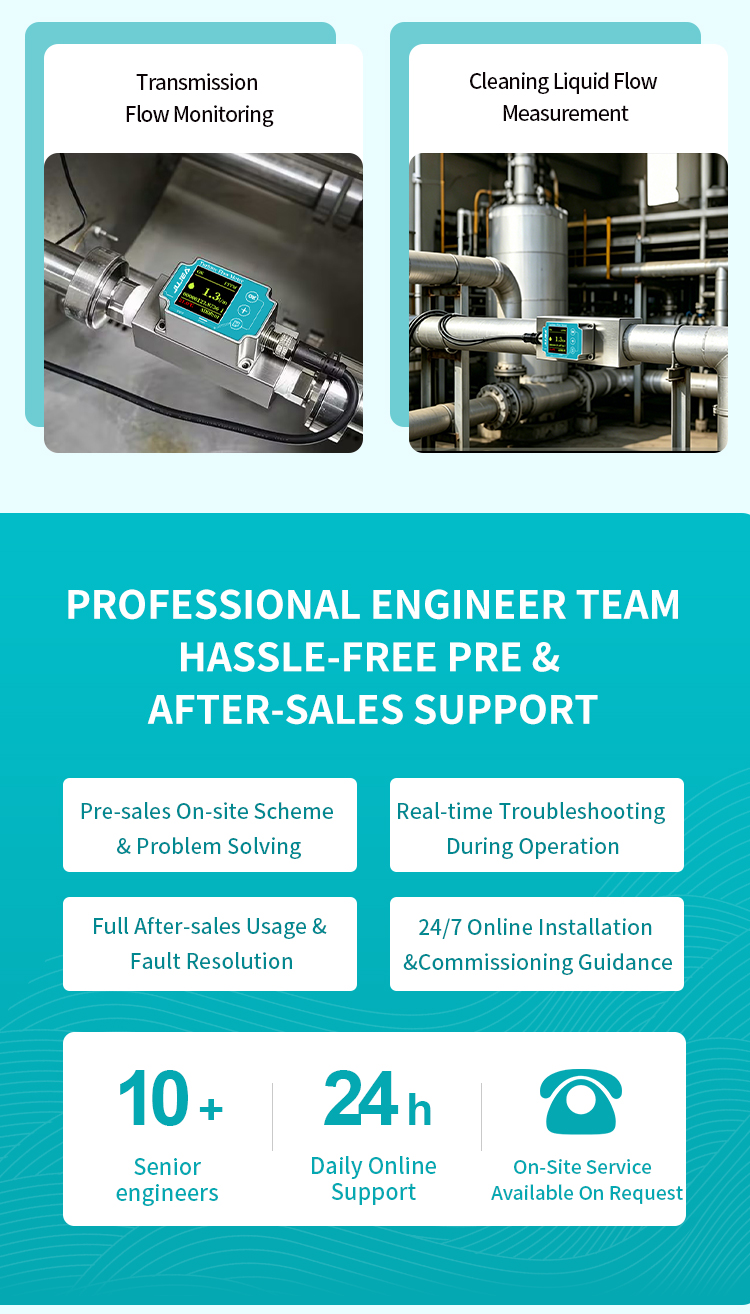

Simple installation & disassembly, ideal for lab, instrument and small chemical lines
Wide turndown ratio, stable performance under small flow working conditions

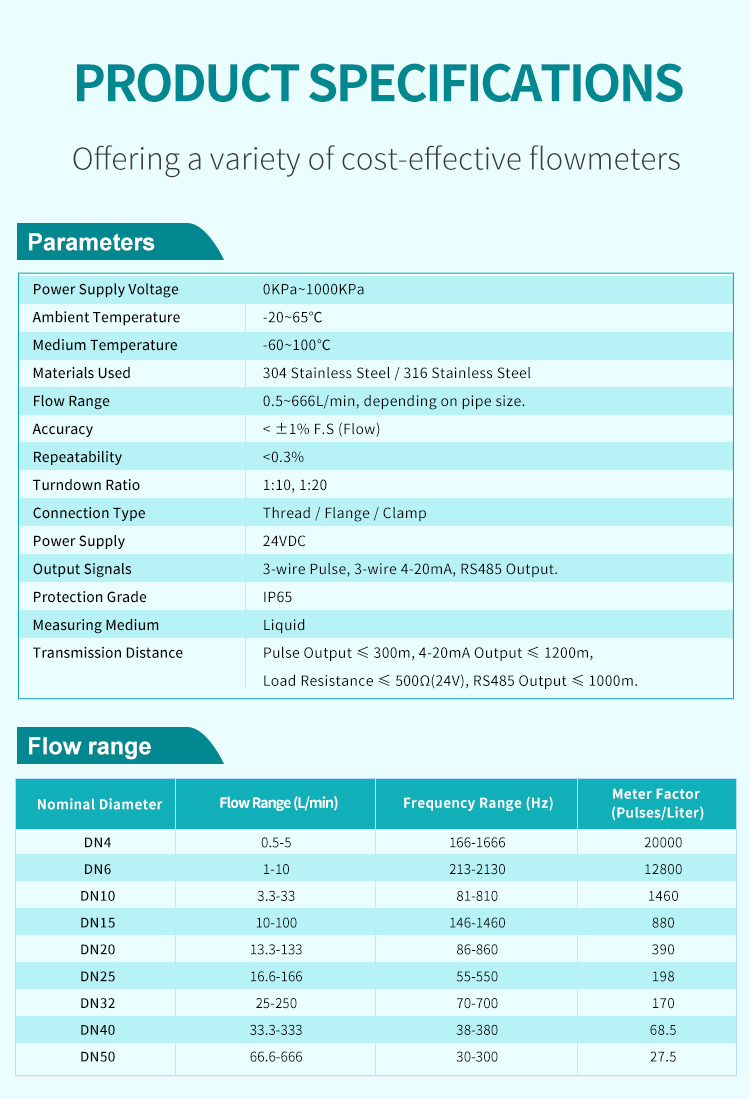

Specification of Micro Turbine Flow Meter

Nominal Pressure (kPa)	0kPa ~ 1000kPa
Ambient Temperature	-20 ~ 65°C
Medium Temperature	-60 ~ 100°C
Material	304 Stainless Steel / 316 Stainless Steel
Flow Rate Range	0.5 ~ 666L/min, depending on pipe size.
Accuracy	< ±1% F.S (flow rate)
Repeatability	< 0.3%
Range Ratio	1:10, 1:20
Connection Method	Thread / Flange / Clamp
Power Supply	24VDC

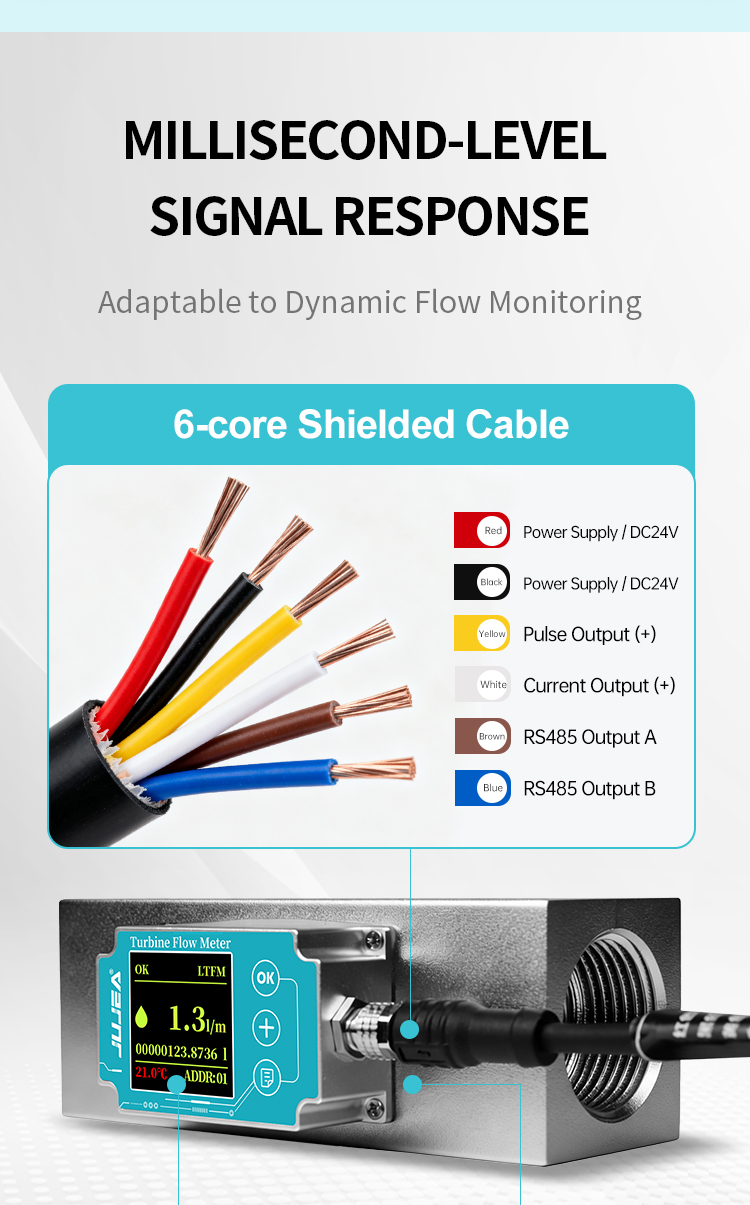

Output Signal	Three-wire pulse output, three-wire 4-20mA output, RS485 output
Protection Rating	IP65
Measurement Medium	Liquid
Transmission Distance	Pulse output ≤300m, 4-20mA output ≤1200m, load resistance ≤500Ω (24V), RS485 output ≤1000m
