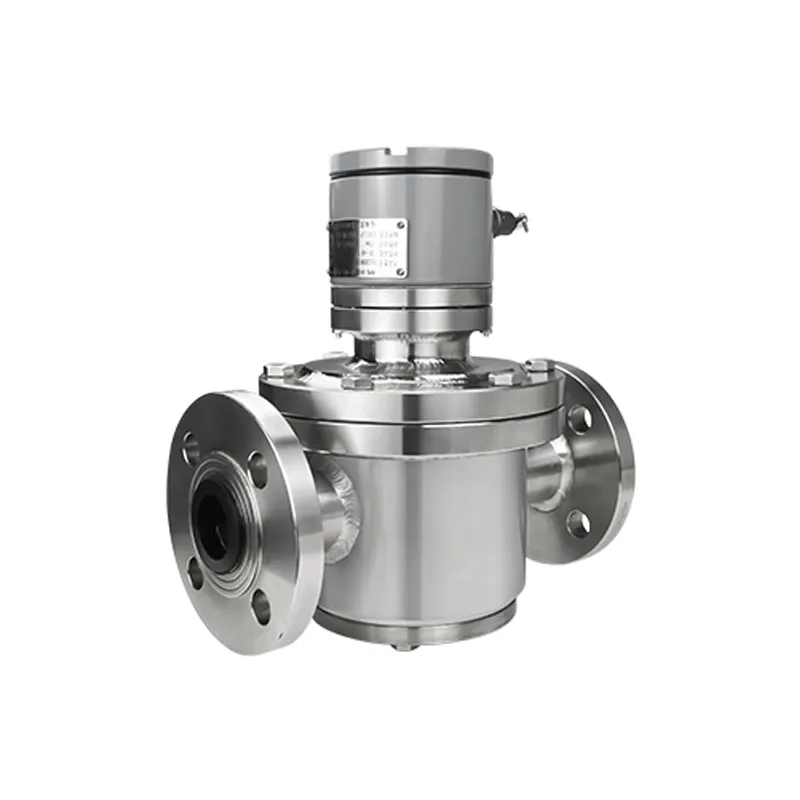

Nerezová ocelová oválná zařízení průtokoměr

nerezová ocelová oválná zařízení průtokoměr přijímá pozitivní zásadu posunu s součástmi odolnými proti korozi ss304/316. Dosahuje 0,5 vysoké přesnosti, přizpůsobuje kapaliny s vysokou viskozitou a volitelný mechanický ukazatel nebo lcd s impulsem, 4-20ma a rs485 výstupy signálu.

Features of Stainless Steel Oval Gear Flow Meter

Wetted parts adopt SS304/SS316 stainless steel, anti-corrosion for chemical, oil media
Positive displacement oval gear structure, high accuracy up to 0.2 / 0.5 grade
Good adaptability to medium viscosity, suitable for normal & high viscosity liquid
Wide measuring turndown ratio, stable measurement under steady flow
Two display options: mechanical pointer counter or local LCD screen
Multiple signal outputs: pulse, 4-20mA analog, Modbus RS485
Optional high-temperature radiator for high-temperature working conditions

Specification of Stainless Steel Oval Gear Flow Meter

Standard Type
Nominal Pressure (Mpa)	1.6, 2.5, 4.0, 6.3
Temperature Range	Conventional pointer type: -20~+80℃; High temperature pointer type: -20~+200℃; Conventional LCD type: -20~+60℃; High temperature LCD type: -20~+150℃
Accuracy Class	0.5%
Viscosity of Measured Liquid	0.6-2mPa.s	2-200mPa.s
High-precision Type
Nominal Pressure (Mpa)	1.6, 2.5, 4.0, 6.3
Temperature Range	Conventional pointer type: -20~+80℃; High temperature pointer type: -20~+200℃; Conventional LCD type: -20~+60℃; High temperature LCD type: -20~+150℃
Accuracy Class	0.2%
Viscosity of Measured Liquid	0.6-2mPa.s	2-200mPa.s
High viscosity, high precision Type
Nominal Pressure (Mpa)	1.6, 2.5, 4.0, 6.3
Temperature Range	Conventional pointer type: -20~+80℃; High temperature pointer type: -20~+200℃; Conventional LCD type: -20~+60℃; High temperature LCD type: -20~+150℃
Accuracy Class	0.2%
Viscosity of Measured Liquid	200-1000mPa.s	1000-2000mPa.s
