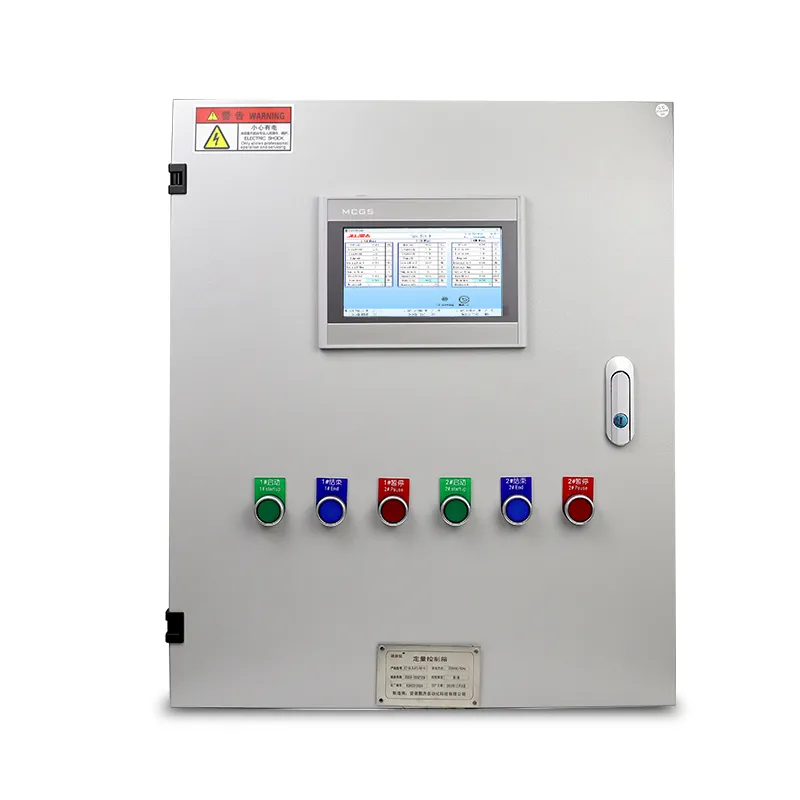

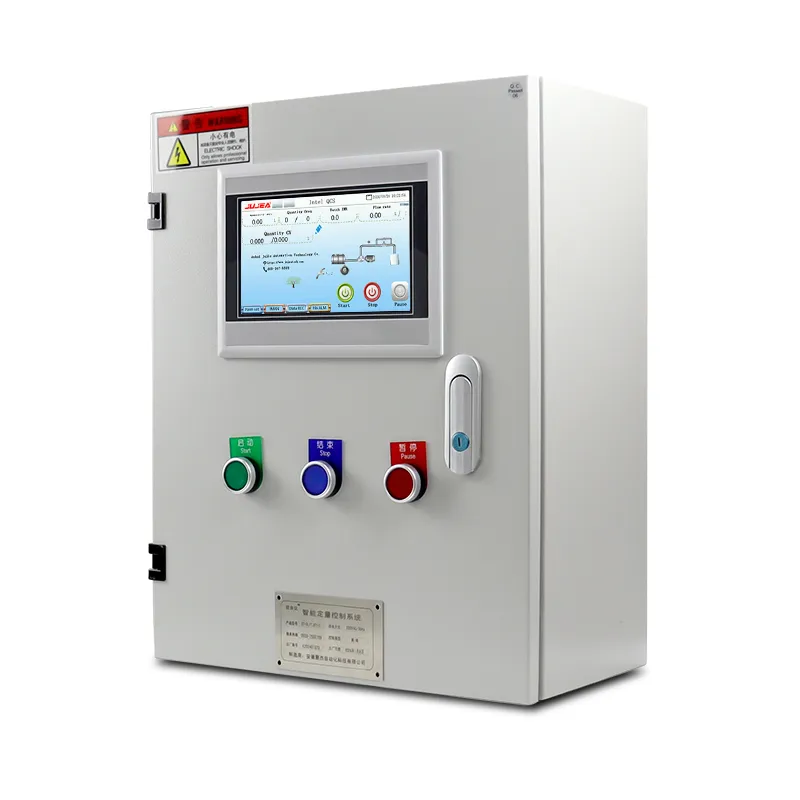

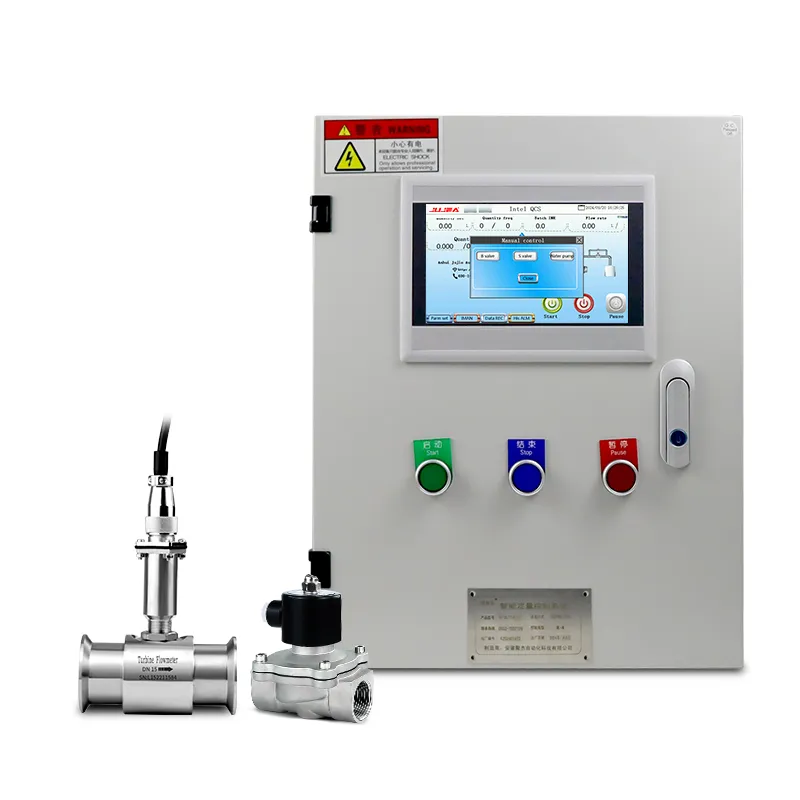

Jednokanálový řídící systém plnění šarží

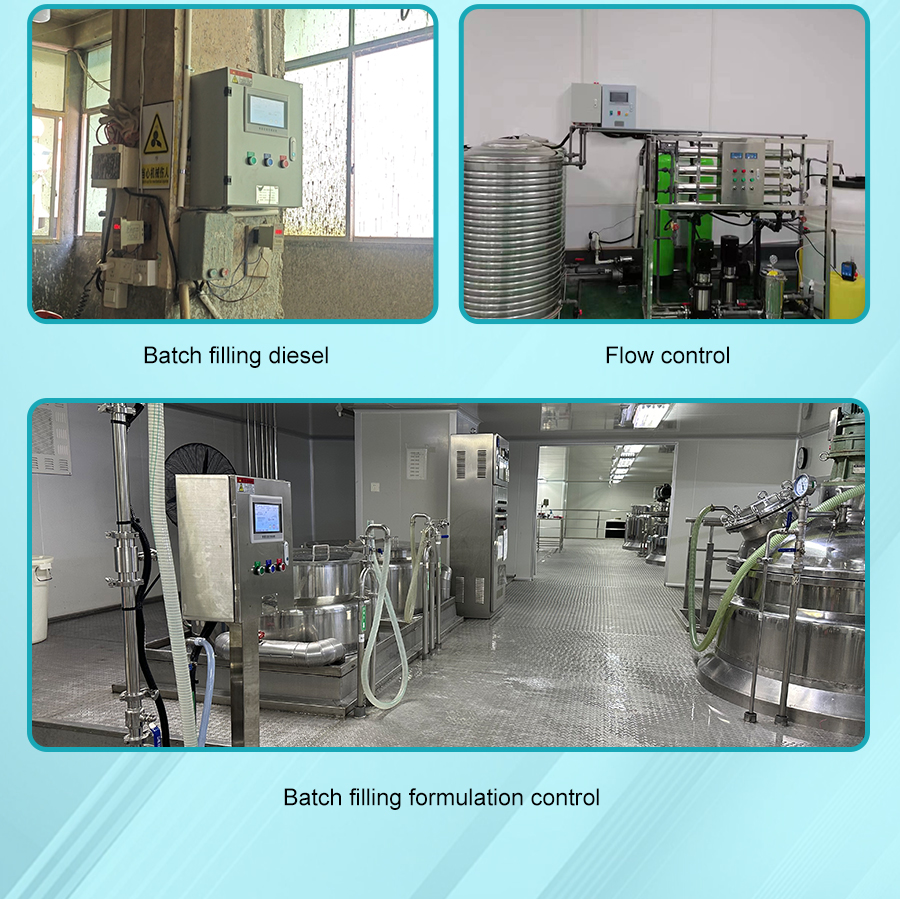

this single-channel quantitative control cabinet adopts hmi design, matching various flowmeters. Podporuje přesné plnění šarží s velkým/malým předem ovládaným ventilem, uchovává záznamy o plnění a obsahuje komunikaci modbus a multi-jednotkové konverzaci pro potraviny, chemické dávkování.

Features of One Channel Batch Filling Controller System

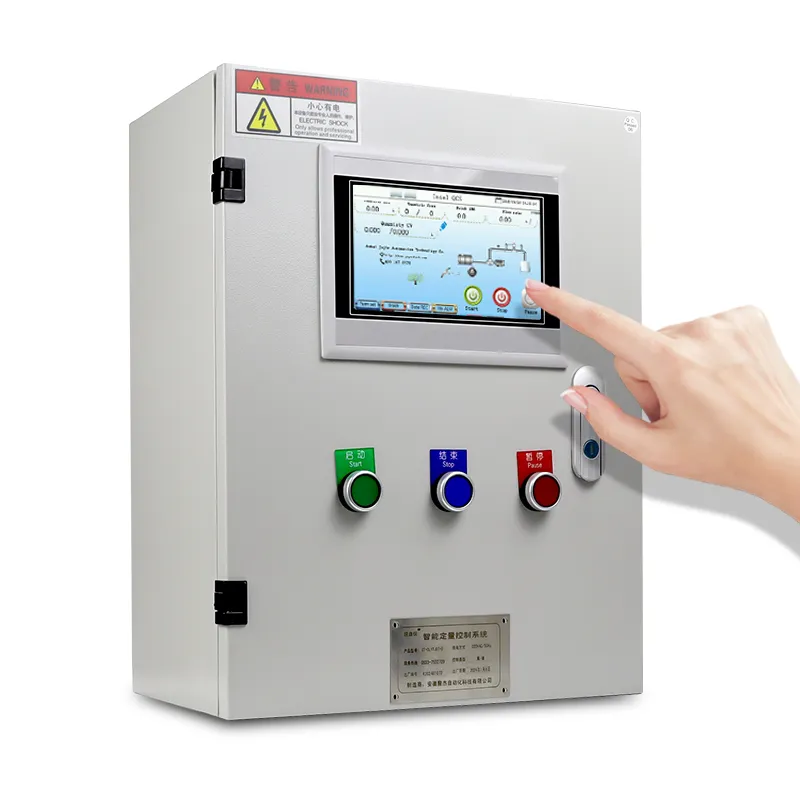

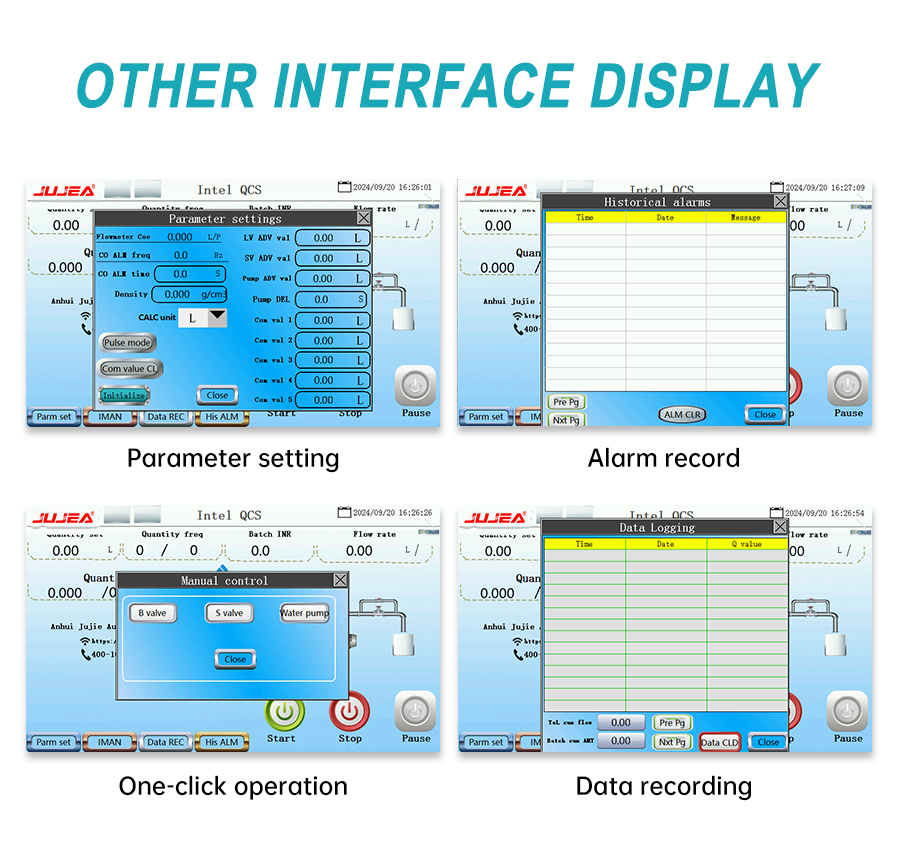

HMI touchscreen operation, intuitive visual flow pipeline display

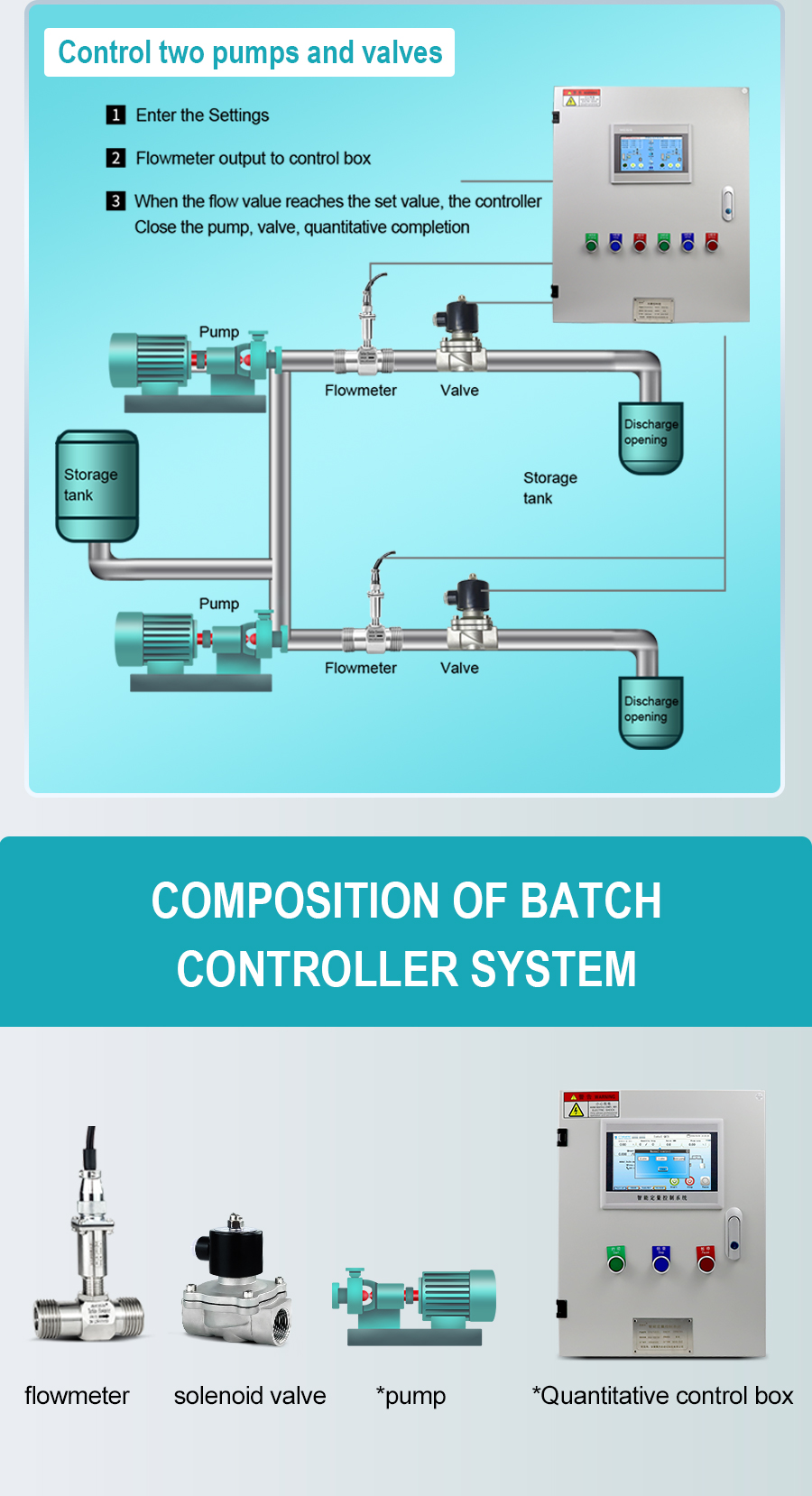

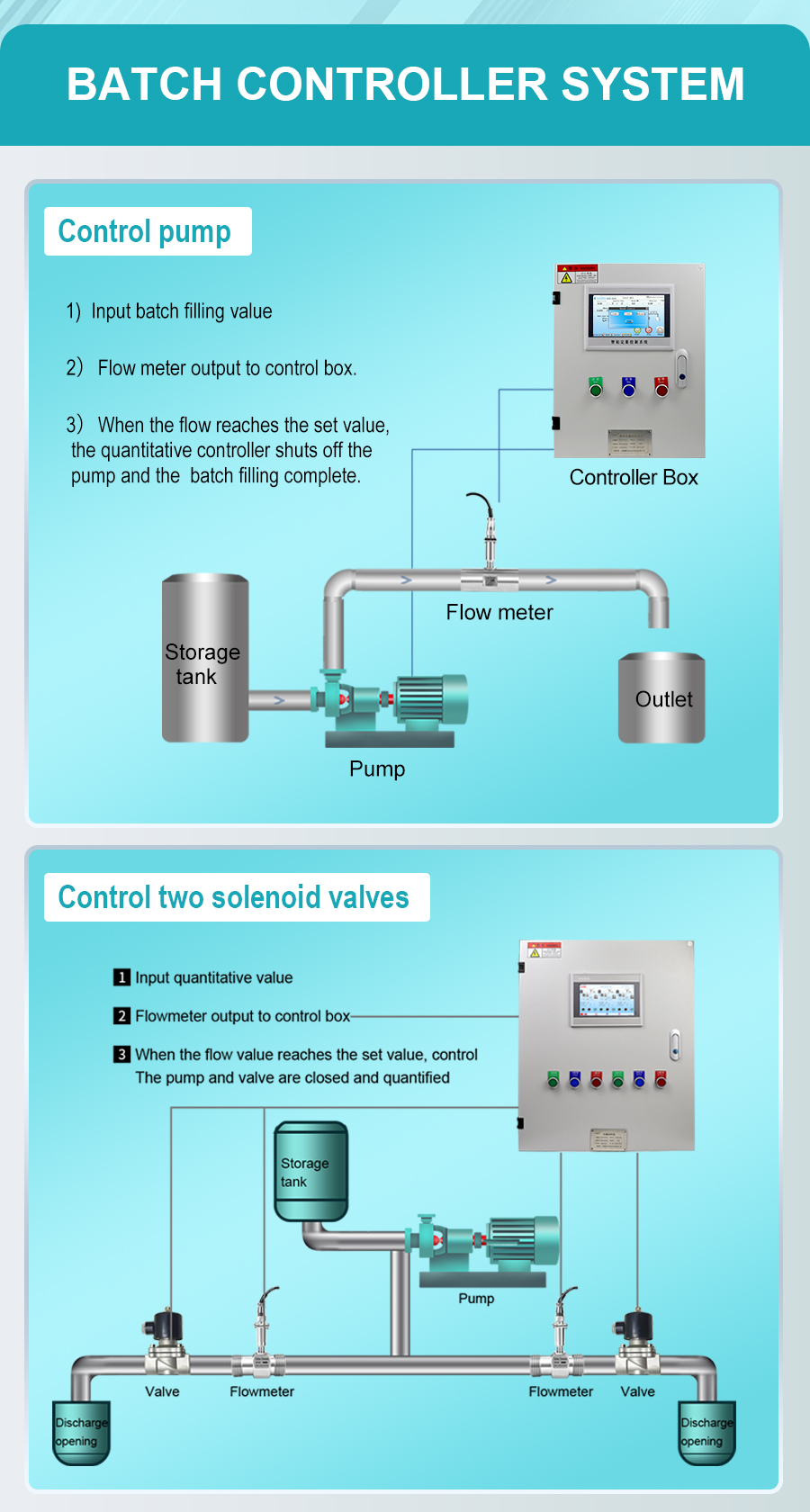

Dual large/small valve control to eliminate filling overshoot error
Supports L/Kg/m³/t multi-unit conversion, mass/volume metering
Permanent batch data & fault alarm storage after power off
Built-in Modbus RTU for remote data upload and linkage
Flow interruption, pump overload automatic alarm protection
Manual valve/pump test mode for convenient on-site debugging

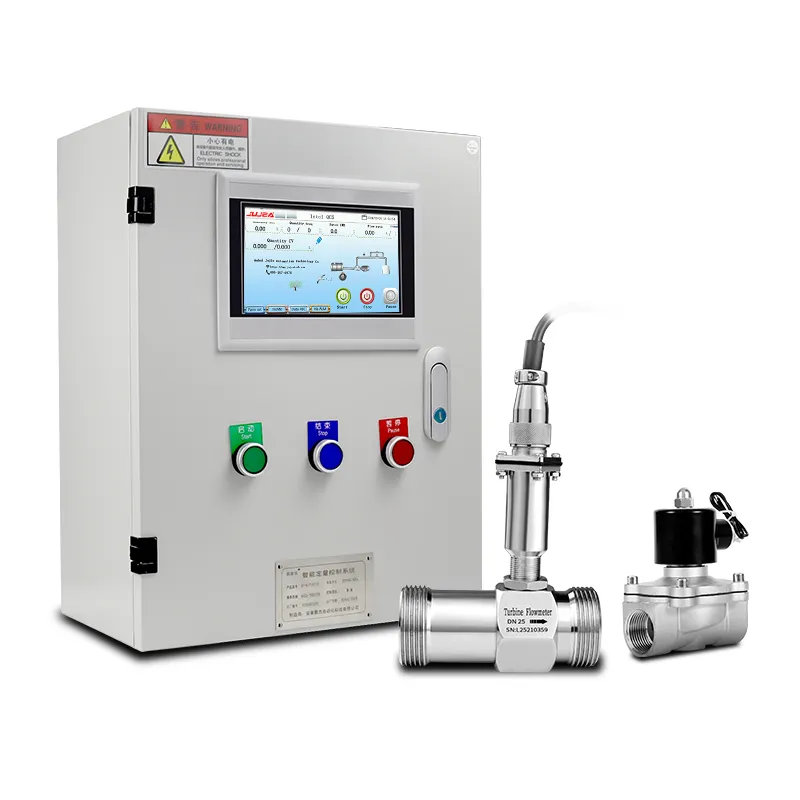

Compatible with pulse and current-type flow meters widely

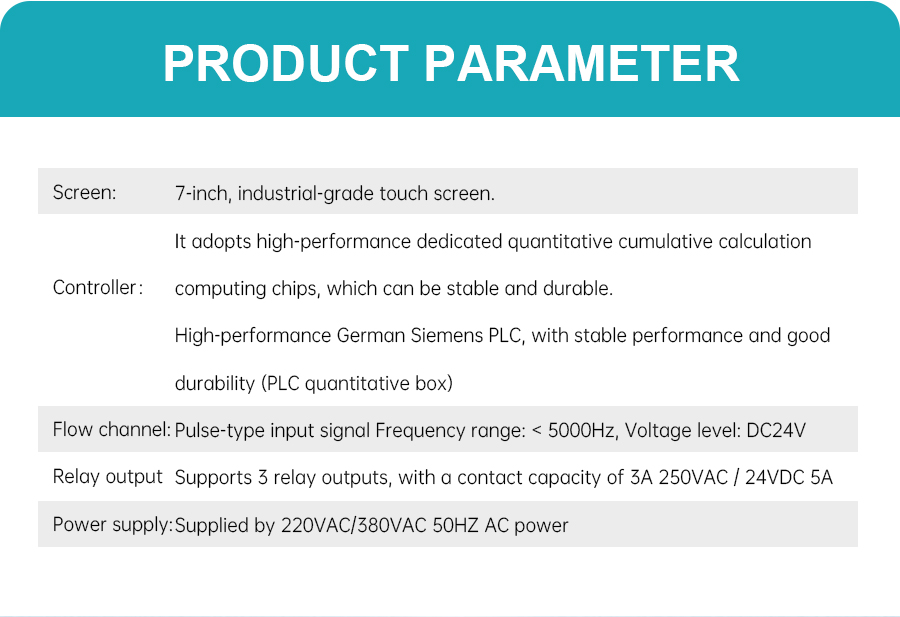

Specification of One Channel Batch Filling Controller System

Screen	7/10/15-inch industrial-grade touchscreens
Controller	High-performance dedicated quantitative accumulation calculation chip
Flow Channel Input	Pulse-type input signal; frequency range:<5000Hz; voltage rating: DC24V
Relay Output	Supports 3-channel relay output, contact capacity 3A 250VAC/5A 24VDC
Power Supply	220VAC/380VAC 50HZ AC power supply
Communication Interface	Provides an RS485 communication interface; supports Modbus RTU protocol (for connection to a host computer or other data reading devices).
Product Dimensions	350450200mm
